Changing Shuttered Cable Regulations for a Site

  • Updated

Some locales require shuttered cables.

The settings for shuttered cables are handled per site, not per charger.

Exceptional Information Warning You must be an installer with a registered installer company to change a this setting. Any changes made by the end user using the installer application could void the compliance with local regulations and also void your Easee warranty.

To add shuttered cables to an existing site:

  1. Open the site in the Installer app.
  2. Open the Site Info section.

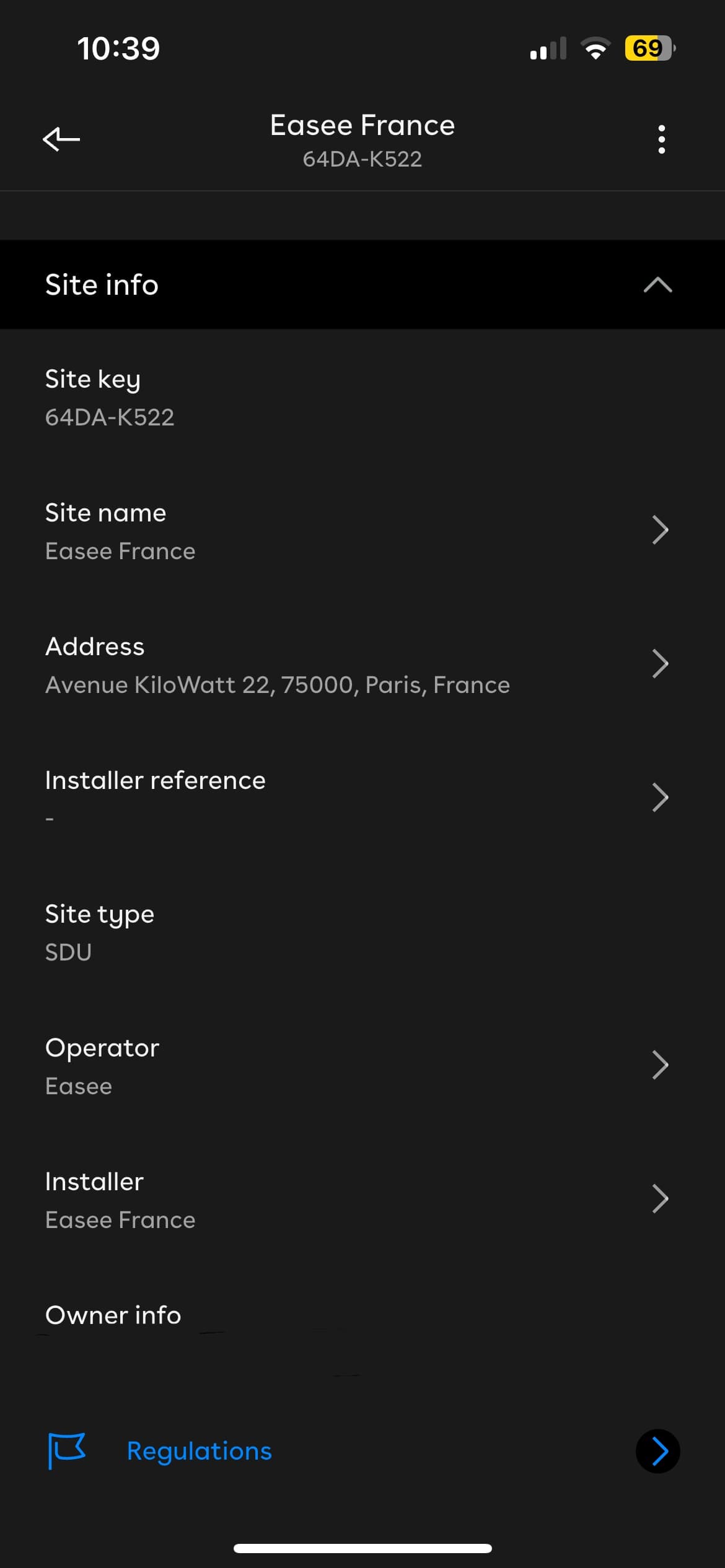

    Site Info screen in English.

  3. At the bottom of the screen, press Regulations.

    The National Regulations screen will display.

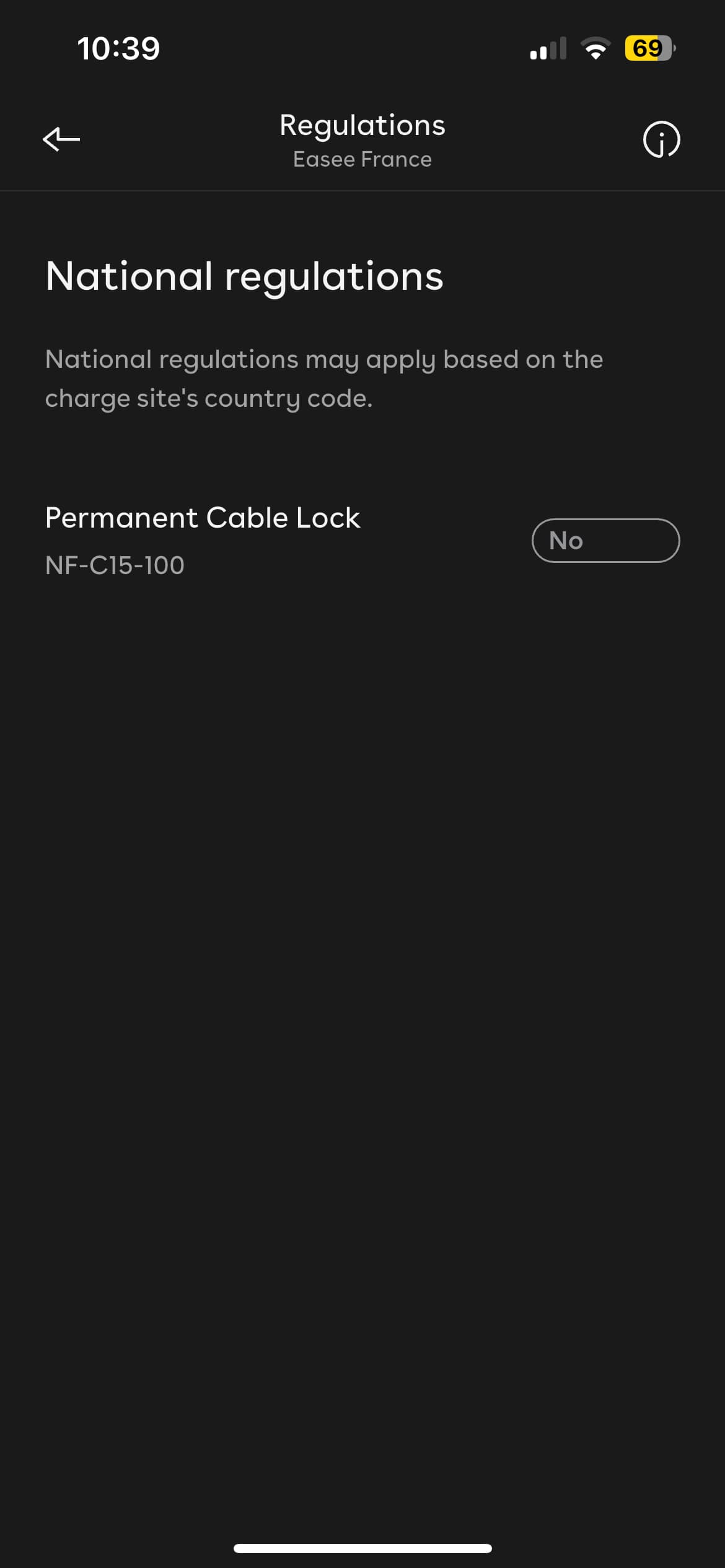

    The National Regulations, with a On Off toggle. National Regulations, turned off.



  4. Press to change the setting.

Make sure you inform the users how this will affect their charger and how it changes in the app.
