Where to install your Equalizer

  • Updated

To get the best possible WiFi and EaseeLink™ signal, the placement of your charger is important.

Indoor Installation Locations

Inside the fuse cabinet

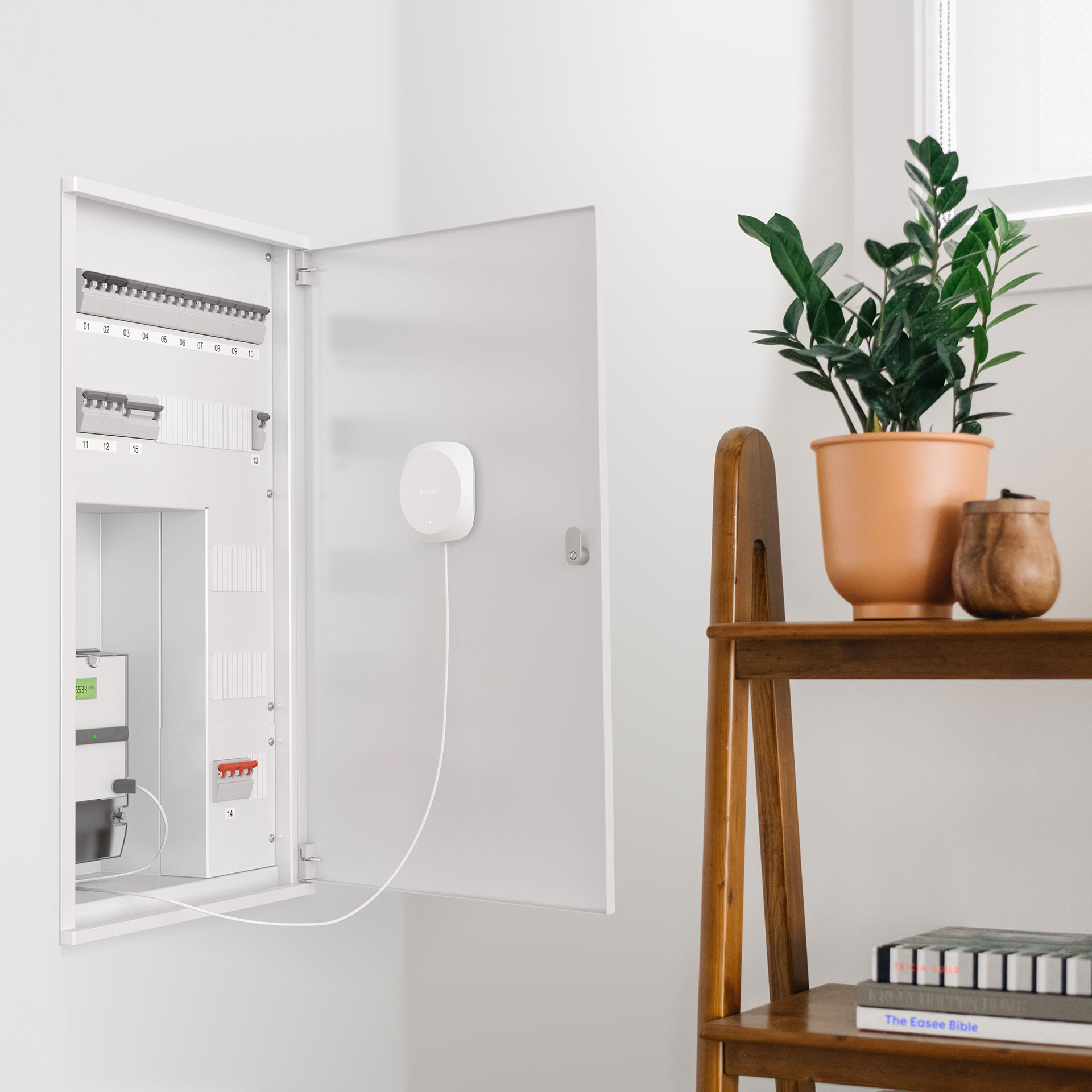

A photo of a fuse cabinet in the home. The cabinet door is open, showing the Equalizer on the inside of the door of the fuse cabinet.

The Equalizer can be placed inside the fuse cabinet. In most cases, this will work fine as long as the EaseeLink™ radio signal reaches the chargers or the Equalizer and charger is on the same WiFi.

On the fuse cabinet door

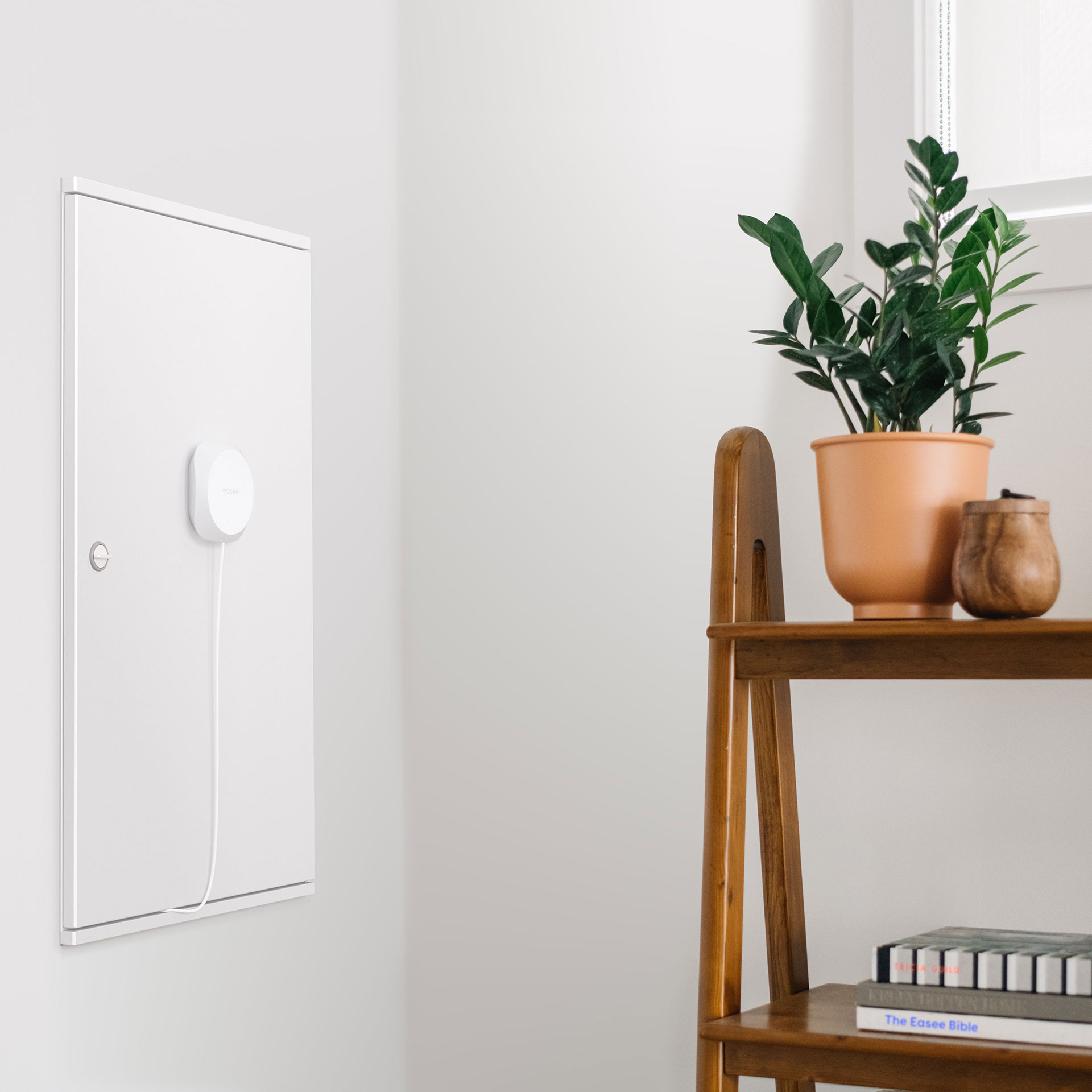

A photo similar to the previous. The fuse cabinet door is closed, and the Easee Equalizer is on the exterior of the fuse cabinet door, with a wire trailing into the fuse cabinet.

If the EaseeLink™ radio signal is weak we suggest placing the Equalizer on the outside of the fuse cabinet using the magnetic backside. The Equalizer cable is flat and should be possible to feed through under the fuse cabinet door.

Wall-mounted, closer to the Easee Chargers

A similar photo of the fuse cabinet. The door is closed, but a wire stretches up from the cabinet to an Easee Equalizer mounted on the wall a few centimeters above the cabinet.

Alternatively, the Equalizer can be attached to a wall using the wall-mount in the box. In the illustration above the Equalizer is placed right next to the fuse cabinet, but it's possible to extend the cable.

Maximum lengths:

  • The maximum distance between the modbus and HAN is 200 meters.
  • The maximum distance between the modbus and P1 is 200 meters.
  • The maximum distance between the smartmeter and HAN is 200 meters.
  • The maximum distance between the smartmeter and P1 is 15 meters.
    This maximum distance will be shorter for certain smartmeters.

Outdoors - inside grid supply cabinet

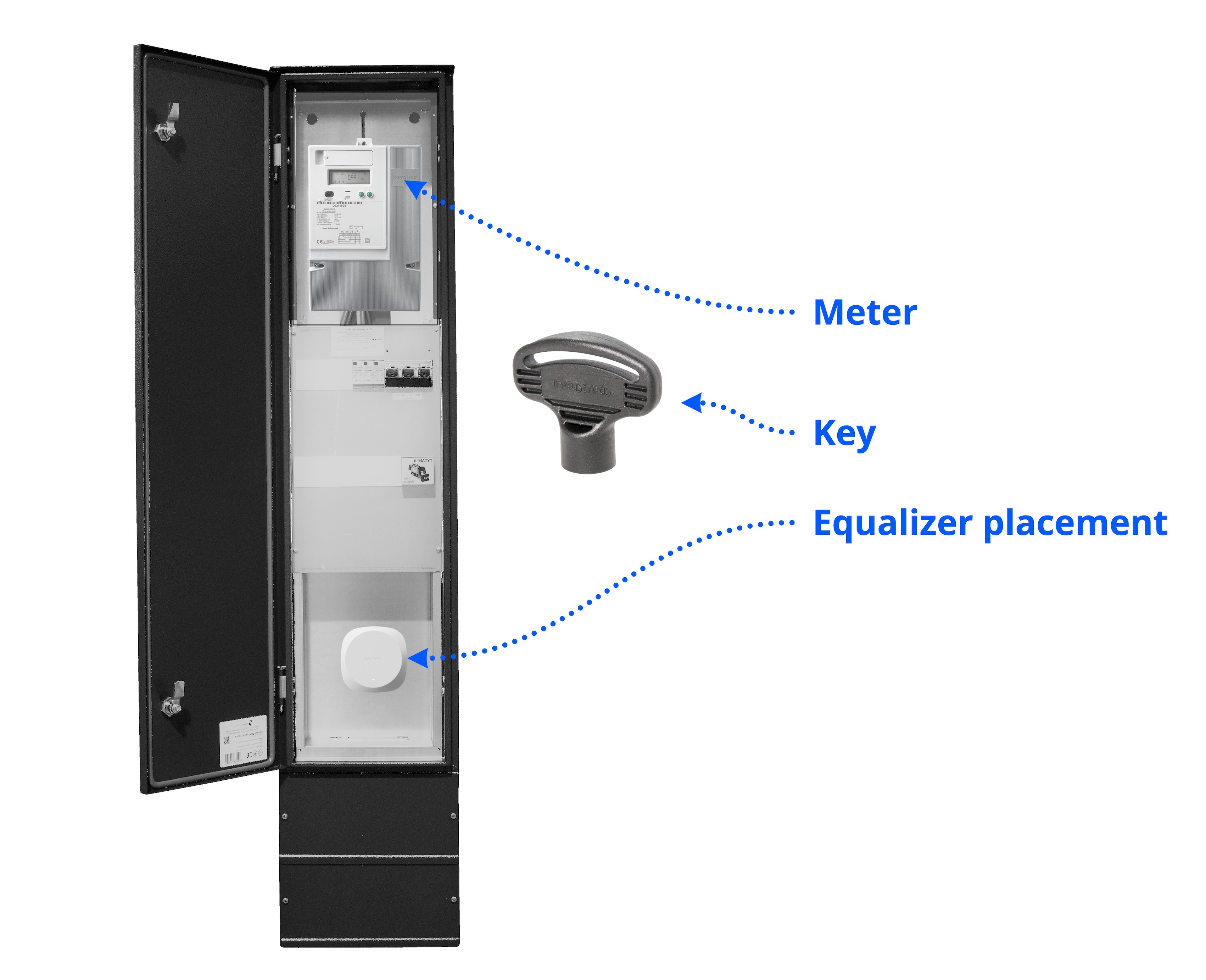

An image of an exterior fuse cabinet with the door open. The meter, the key, and the Equalizer are all called out with blue dotten lines.

In some cases, your electricity meter may be placed in an outdoor grid supply cabinet. In cases like this, there should be piping from the cabinet down to your indoor fuse cabinet. Then it is possible to install the Equalizer indoors using a standard ethernet extension cable from the HAN port outdoors to a female adapter indoors.

However, if cable trunking has not been established, then the Equalizer must be installed inside the outdoor grid supply cabinet outdoors.

Exceptional Information Hand Icon The Equalizer is not designed to be placed outdoors and must be installed within a weather-tight cabinet if placed outdoors.
