Viewing the phases in the app

  • Updated

Whether your home grid system is 1- 2- or 3-phase, or your car supports 3-phase or only 1-phase, the app will show you how much amperage is on each phase, and how much voltage is passing between each phase pair.



To see the phases, press the charger. If the charger is charging, press the wave.

Exceptional_Information_CircleInfo_Icon.svg The Equalizer will also show its reported phases and values.


I have an IT grid (1-phase or 3-phase)

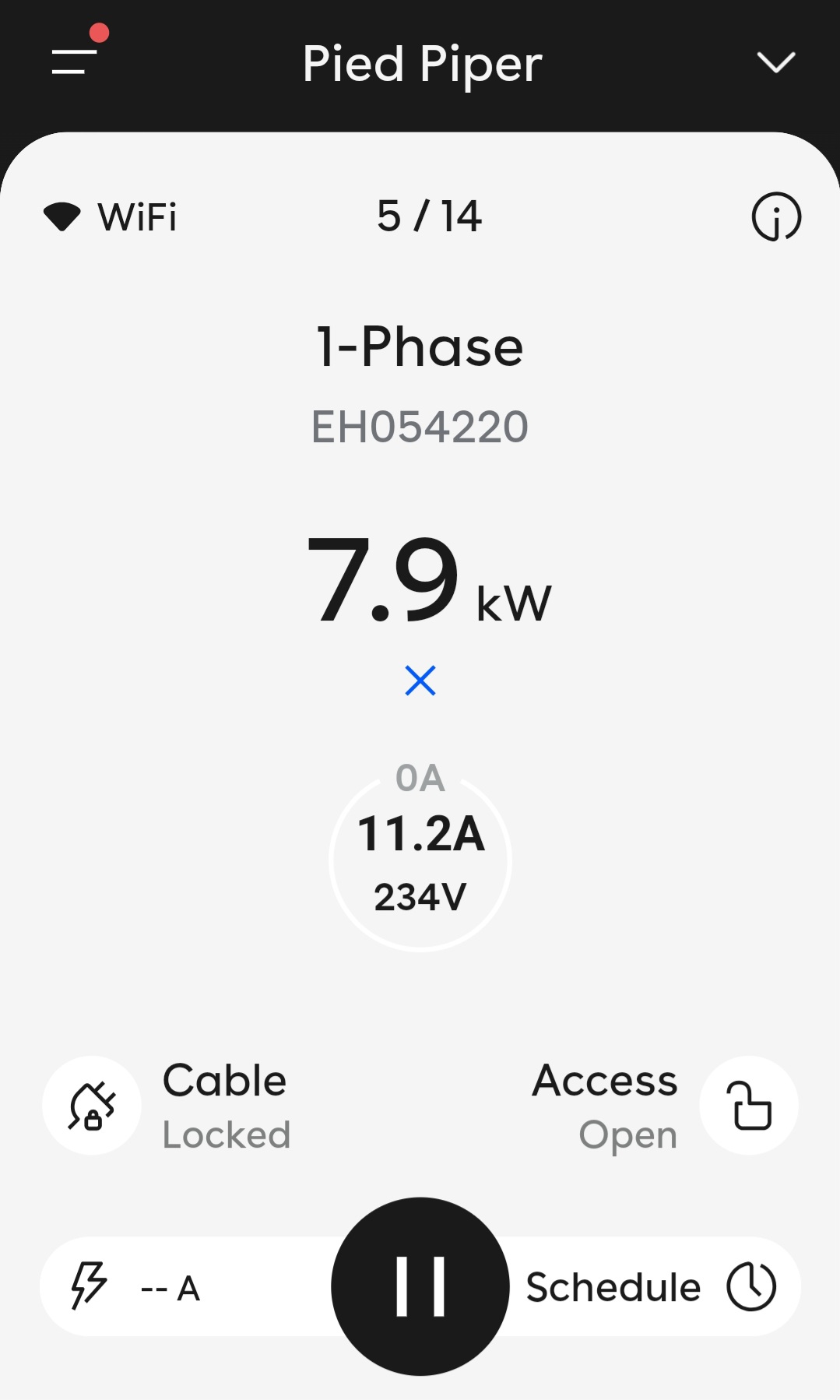

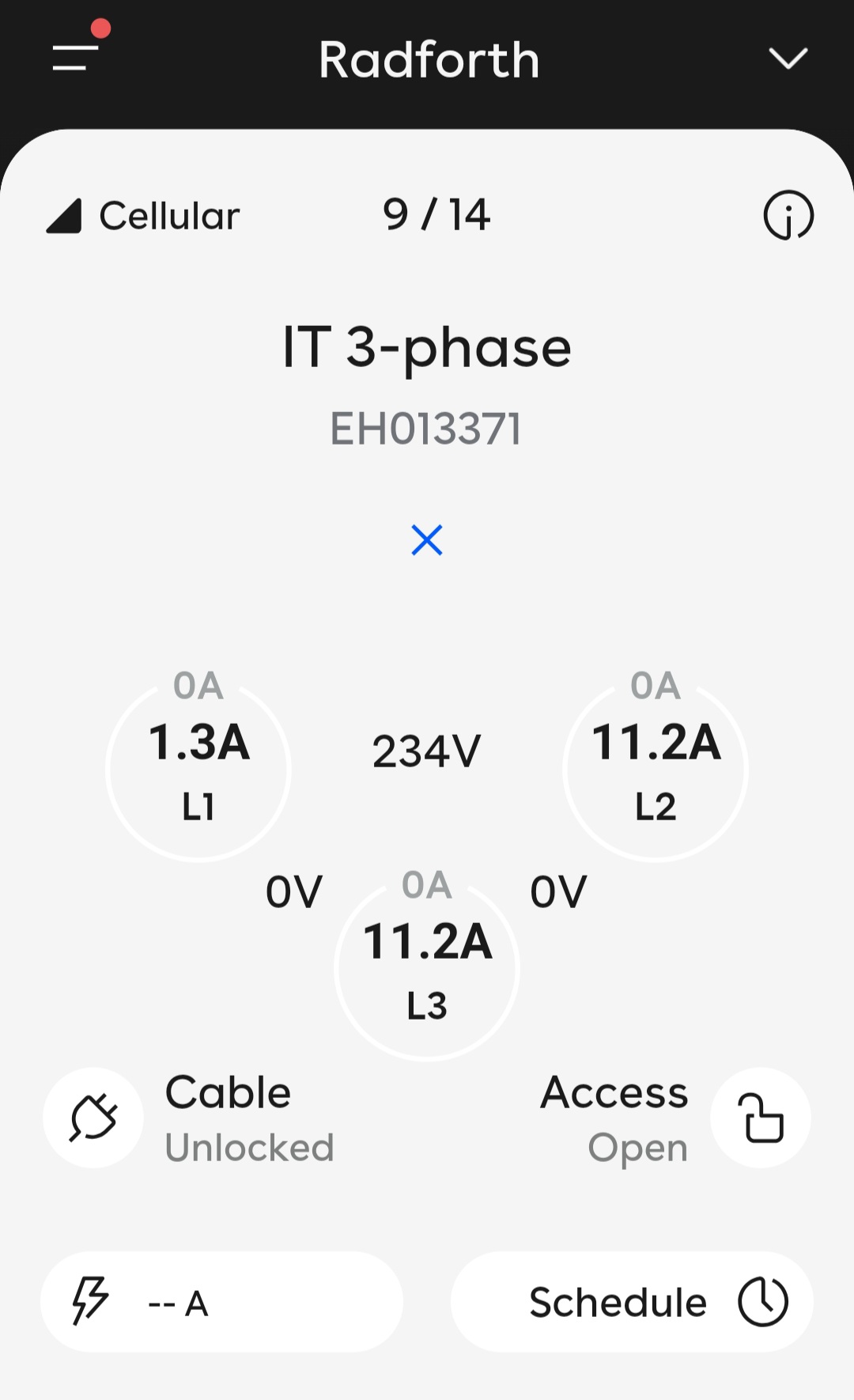

app screen showing one phase power app screen showing three phase IT power

The center will change to show the phases and their values, depending on your installation.

The phase is represented as a circle, with the amperage of the phase at the center of the circle.
With a 3-phase installation, the voltage for each phase pair is shown between each pair.



The top of each circle, in grey, shows the maximum circuit fuse size.



I have a TN 3-phase grid

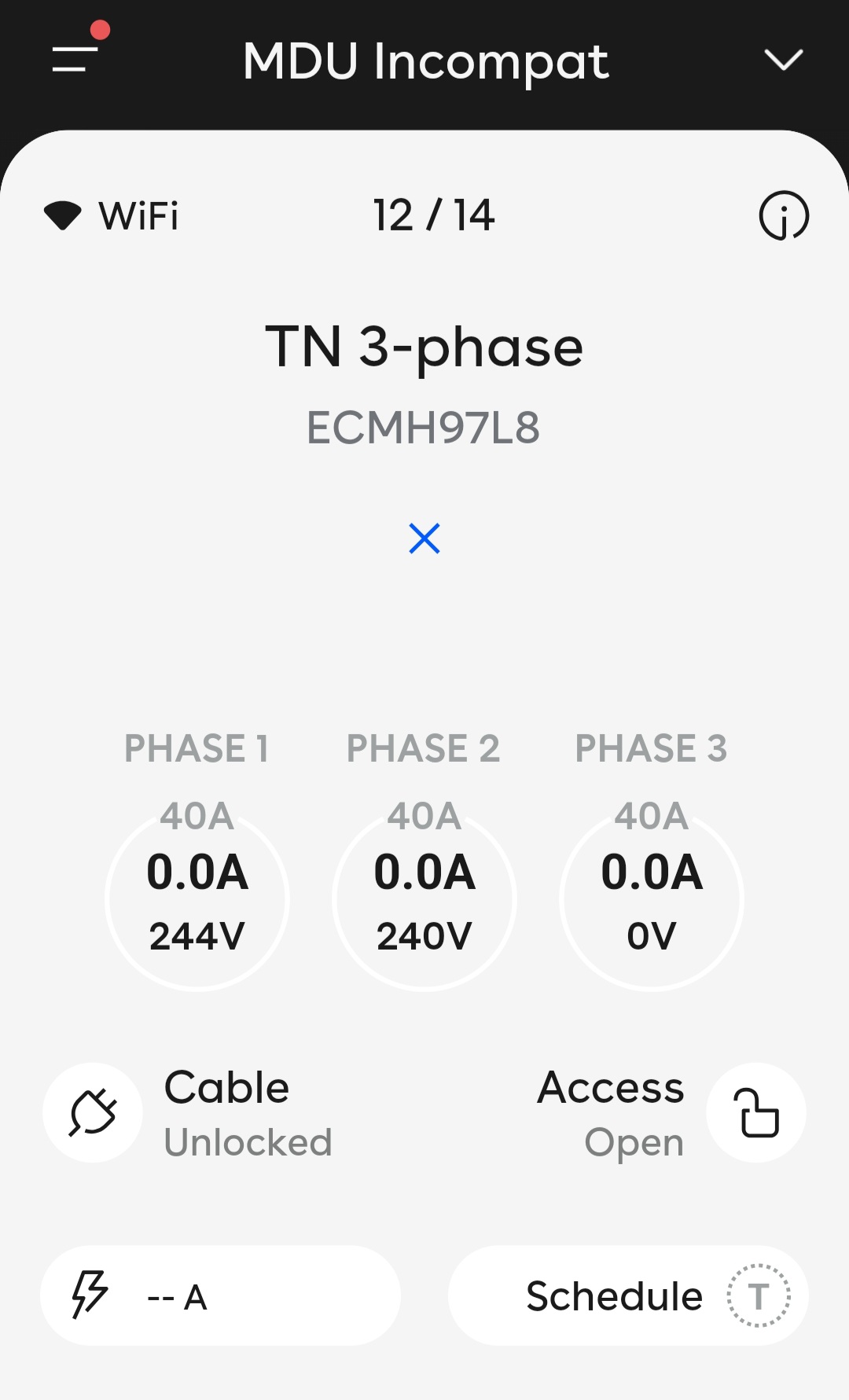

app screen showing three phase TN power

The phases will show in a line rather than in a triangle.



I have a TN 2-phase grid

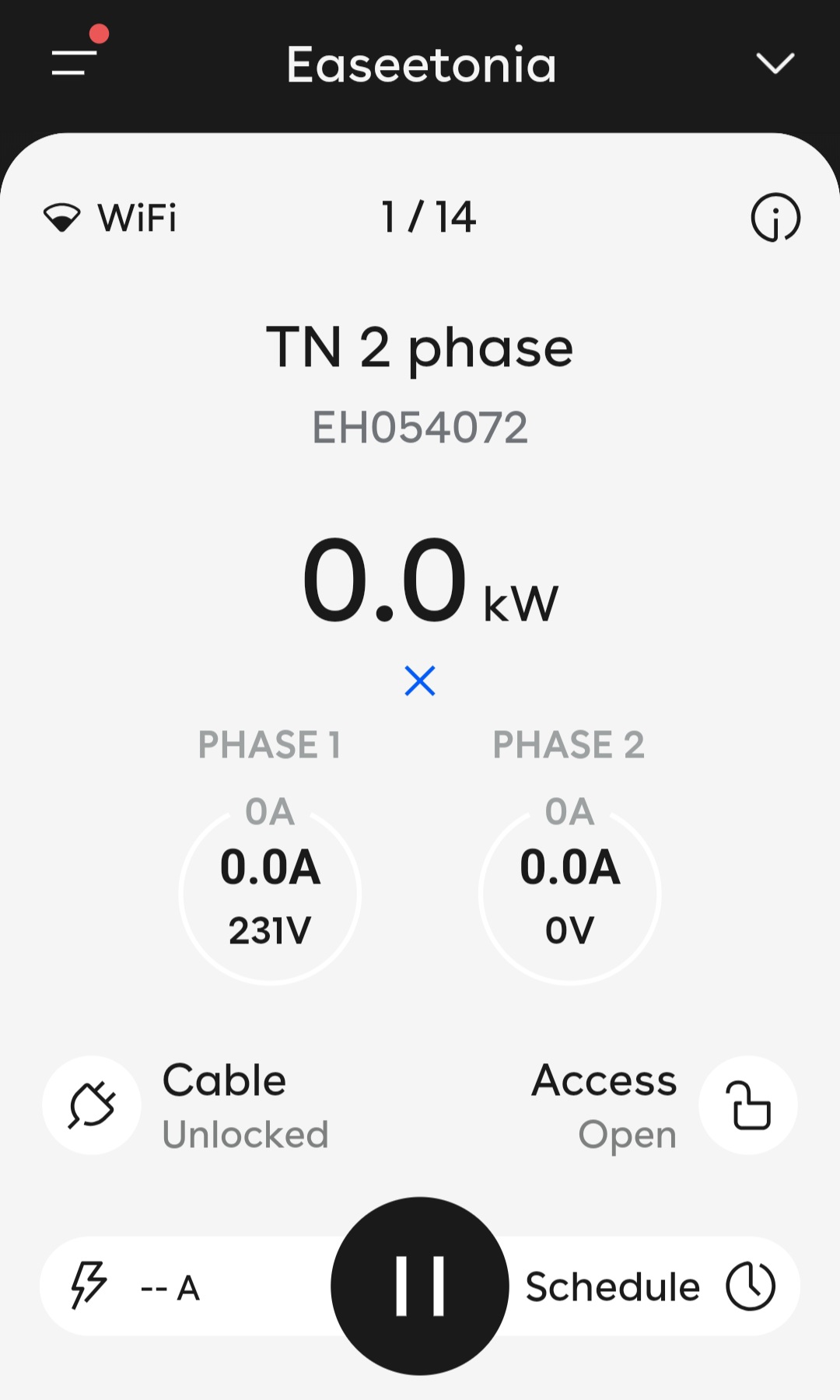

app screen showing TN two phase power



Exceptional_Information_CircleInfo_Icon.svgSome operators may change the values per phase. Check with your operator if the amperage values are different.



If you think you should be charging at 3-phase and you are only charging at one phase, make sure your app is set to allow for 3-phase charging (if you have 3-phase wiring), and make sure your car can charge using 3-phase.
See How do I activate or deactivate 3-Phase charging? and Can my car charge on 3-phase?
