What do I do when high temperatures shut down the charger?

If the charger is too hot, it will shut down. The LEDs will all flash red, and you cannot charge.

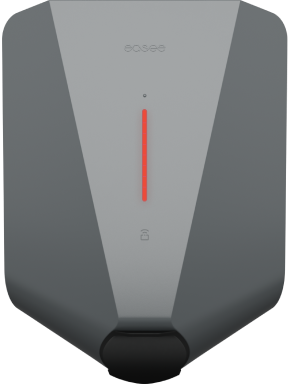

Front of charger showing all red LEDs

Sometimes this happens when the terminals have been damaged. Before we can determine whether we can unlock the charger, we need to check if any of the components have been damaged by overheating.

Pictures are necessary for support to troubleshoot your charger. It will speed the process to have photos ready when you first contact support.

As a customer, you can safely take the pictures yourself as long as you follow the procedure outlined below.

Taking Pictures

Exceptional Information Warning Please ensure you turn off the fuse to the charger before you complete this process.

We do have a short video that can help you with the instructions on how to do this. This is for a replacement Chargeberry; however, you will need to follow the steps up until removing the Chargeberry from the backplate. This will provide you access to take the photos required.

Link to video: https://www.youtube.com/watch?v=VQIXGFP7hvk

Example Photos

Use these photos as a guide for what we require photos of and from what angles to make our determination.

Chargeberry pins:

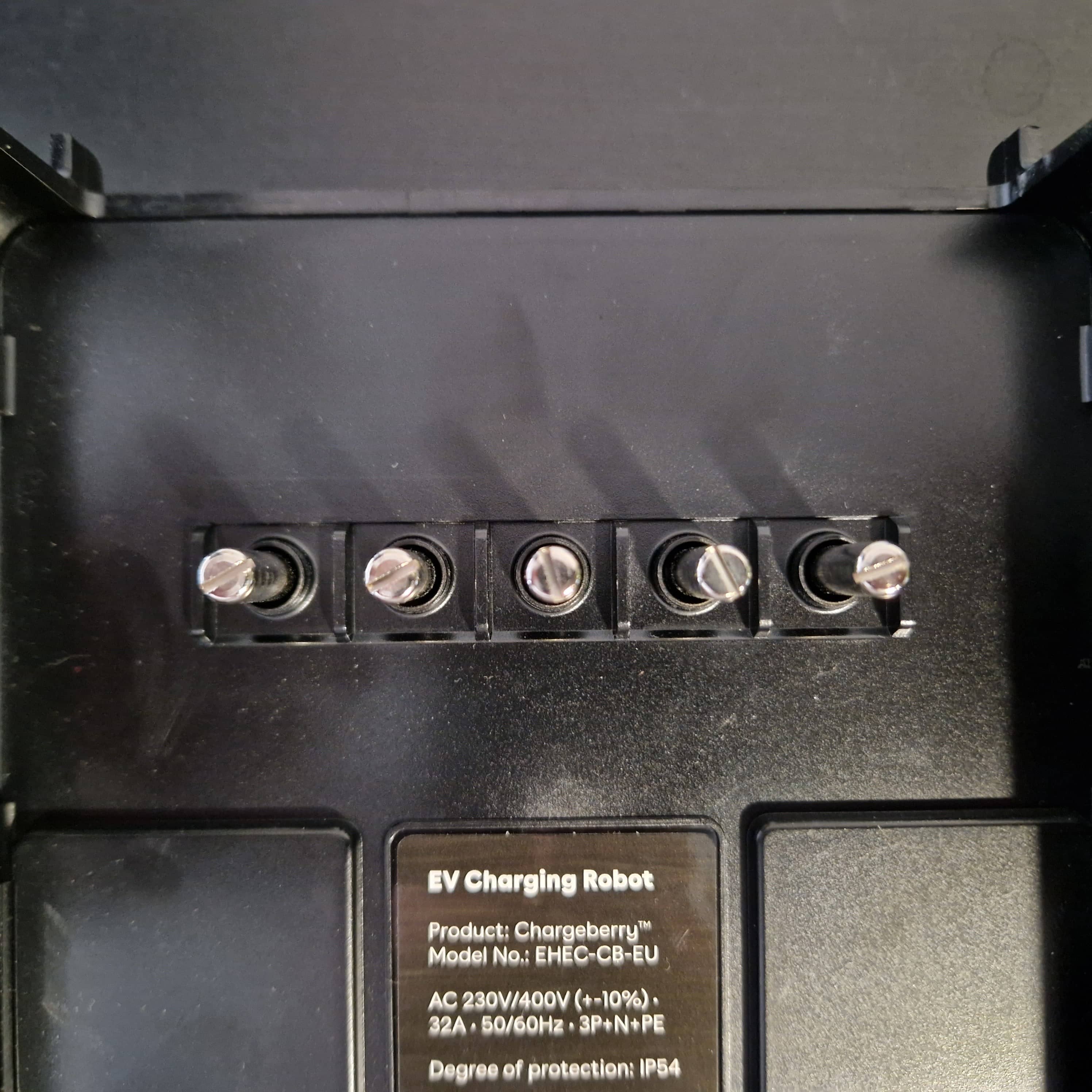

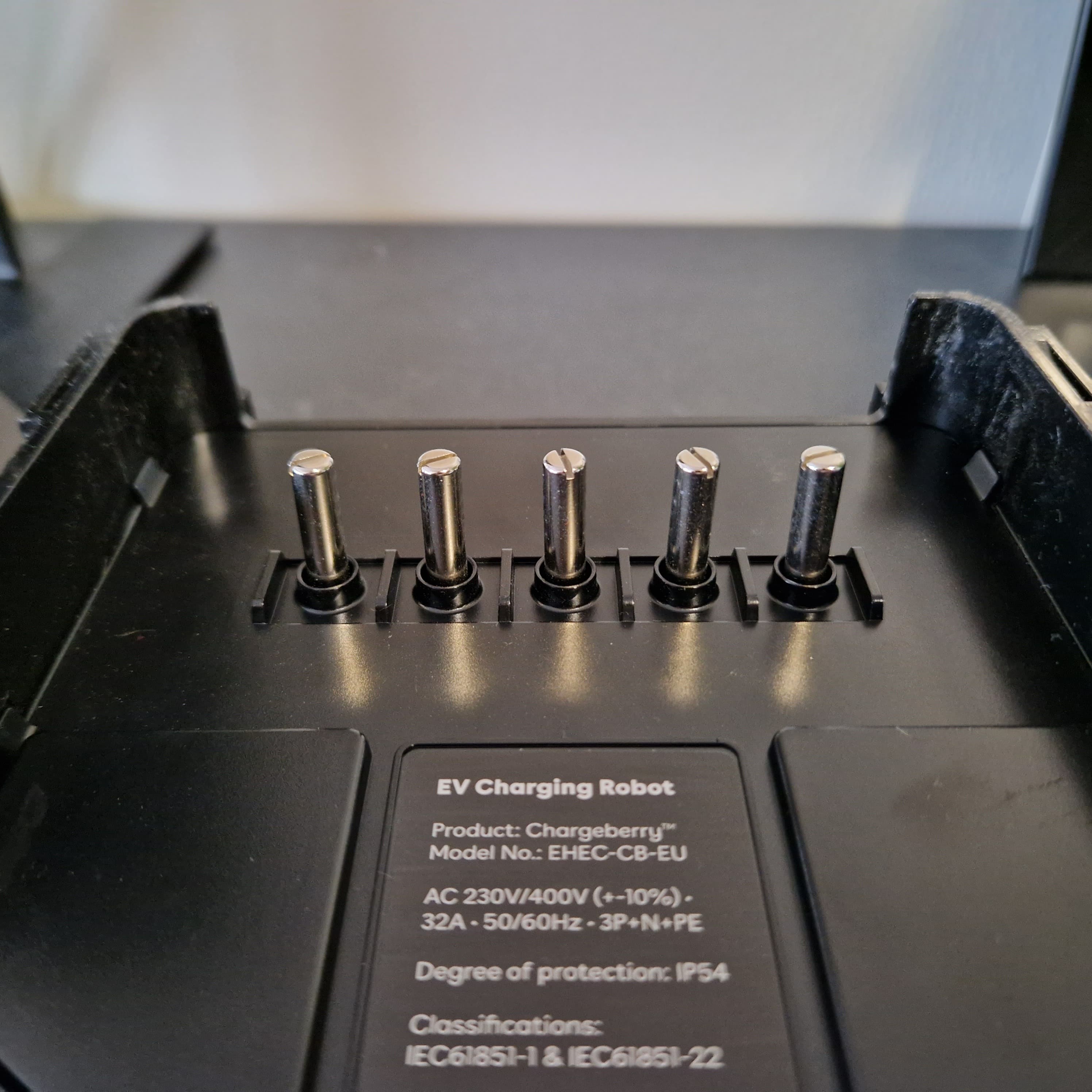

a view of the chargeberry pins from the bottom of the charger a direct view of the chargeberry pins



Backplate terminals

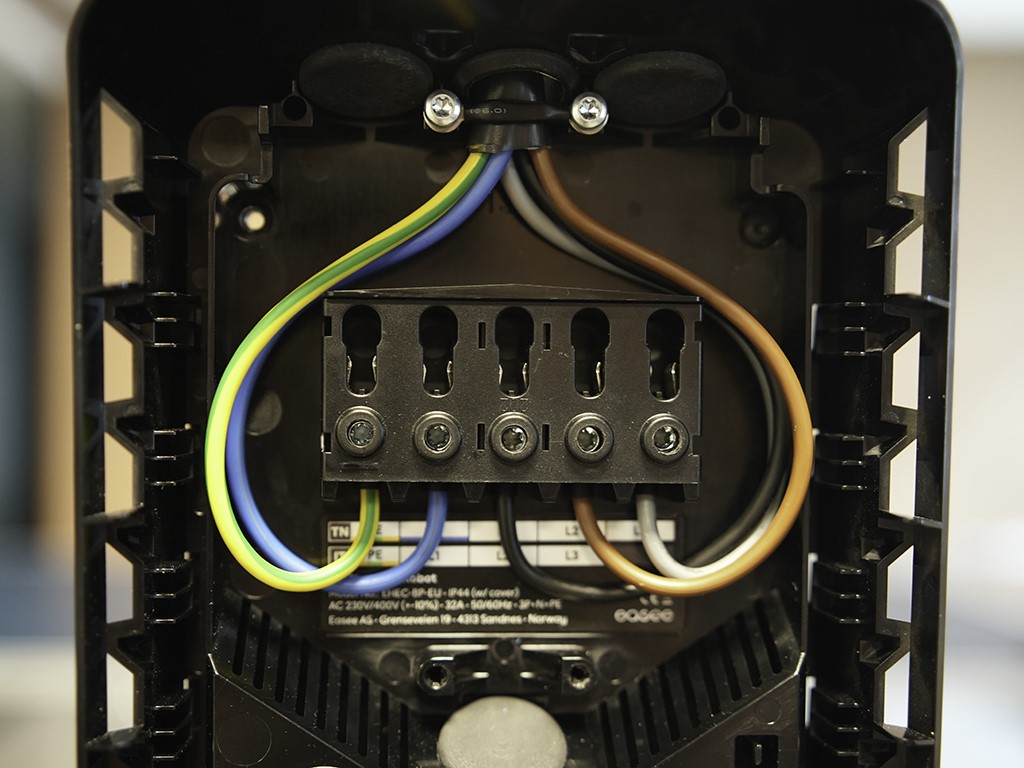

a direct view of the wired backplate a view of the backplate from below



Contact support.
